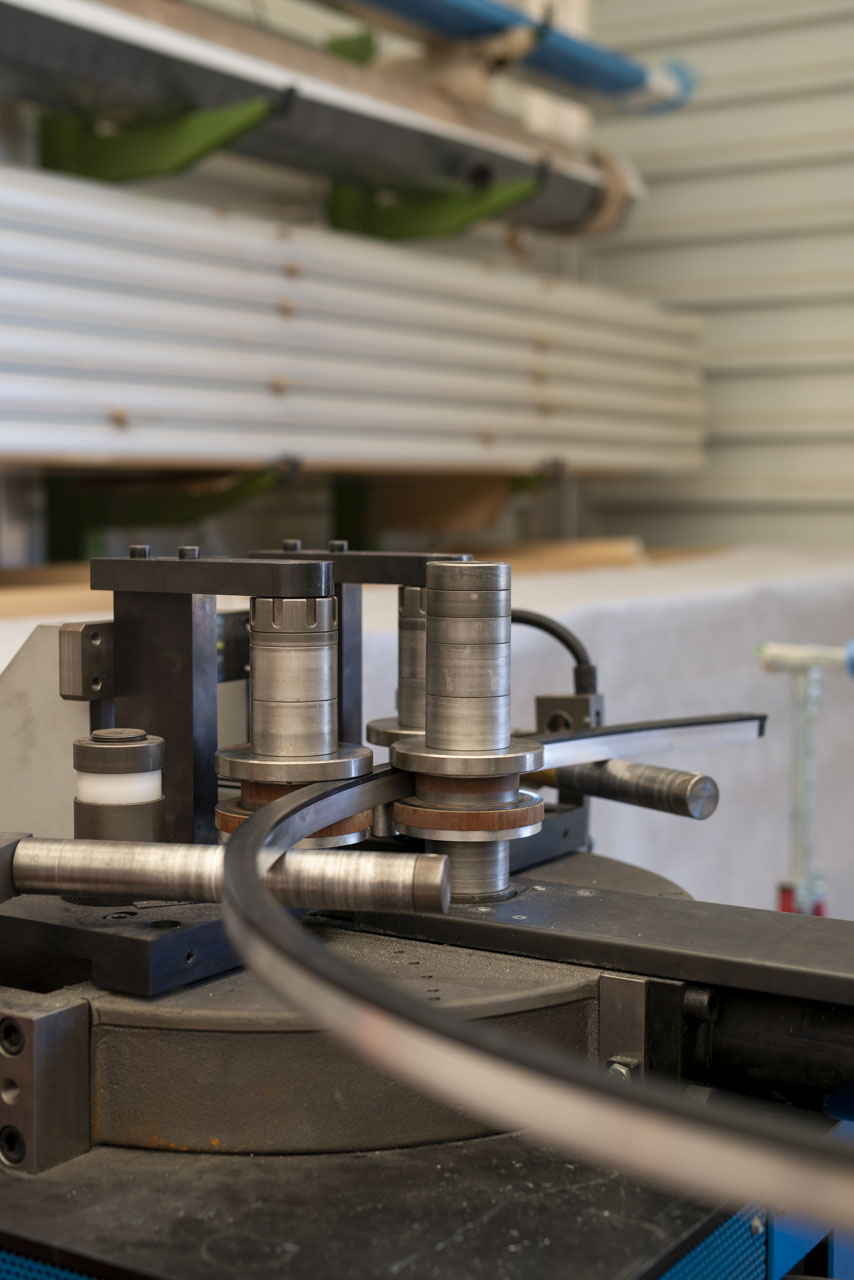

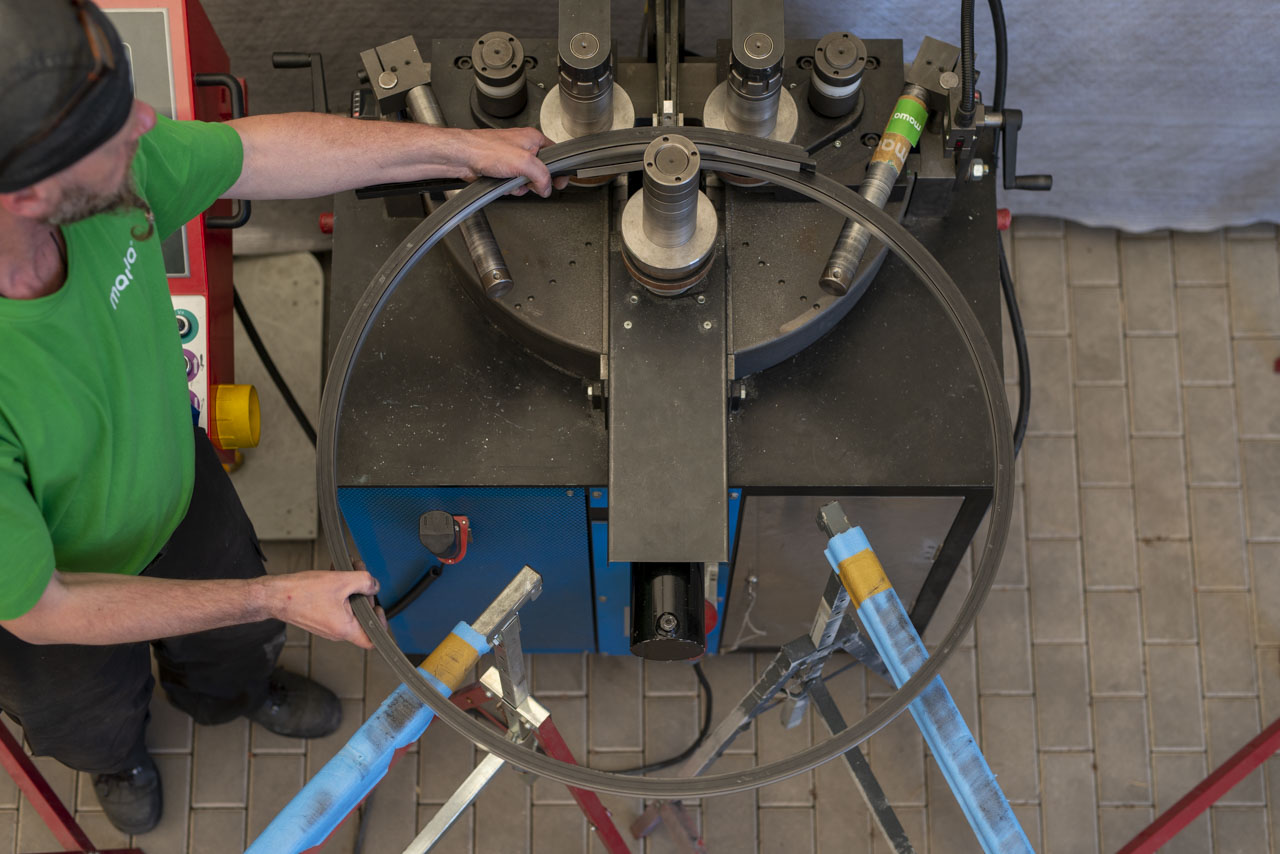

Uniform light shines through a translucent strip embedded in a narrow c-channel. On request, radii and lengths are custom manufactured by mawa. A variety of inlights for numerous room situations are possible with a radius of 30 cm or more. Please ask which specific sizes for circles, ovals, straight lengths, and free forms can be constructed on request.

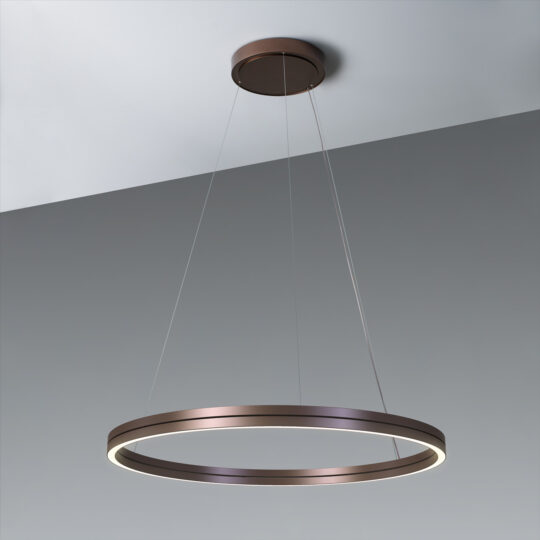

Round lights are suspended from a central point as standard. Perpendicular suspension is available on request. Light color is selectable as well.

Note: Product sizes and configurations shown are exemplary and can be customized on a project-by-project basis upon request.

To view the prices, please create an dealer account or log in first.

Lighting technology / configuration

Design

Martin Wallroth

Engineering

mawa

Material

aluminum powder-coated
acrylic glass one side satin (min. 3 × acrylic segments with tolerance gap)
min. 3 × Reutlinger® cables (depending on size)

Dimensions

Standard sizes: ∅ 600 mm, ∅ 800 mm, ∅ 1000 mm, ∅ 1200 mm
Profile: 20 × 20 mm (W × H)
Standard size total pendant length inclusive ring: 2510–2546 mm (depending on size)

LED module

inclusive LED strip 24 V DC, 22 W per meter
with 2700 K: 124 lm/W
with 3000 K: 127 lm/W
∅ 600 mm: 42 W (with 2700 K)
∅ 800 mm: 55 W (with 2700 K)
∅ 1000 mm: 68,5 W (with 2700 K)
∅ 1200 mm: 82,2 W (with 2700 K)

Operating area

AC 220V–240V / 50Hz–60Hz

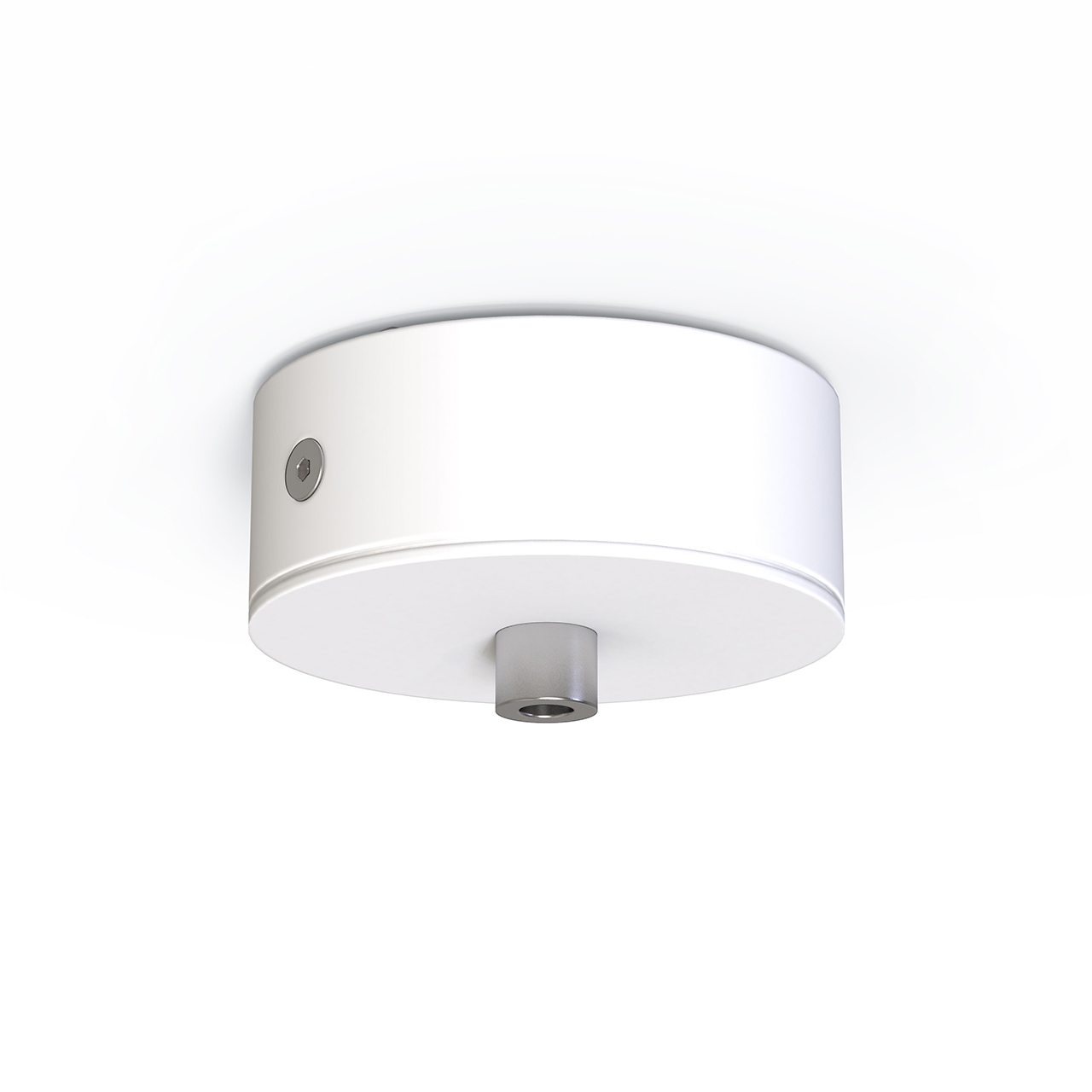

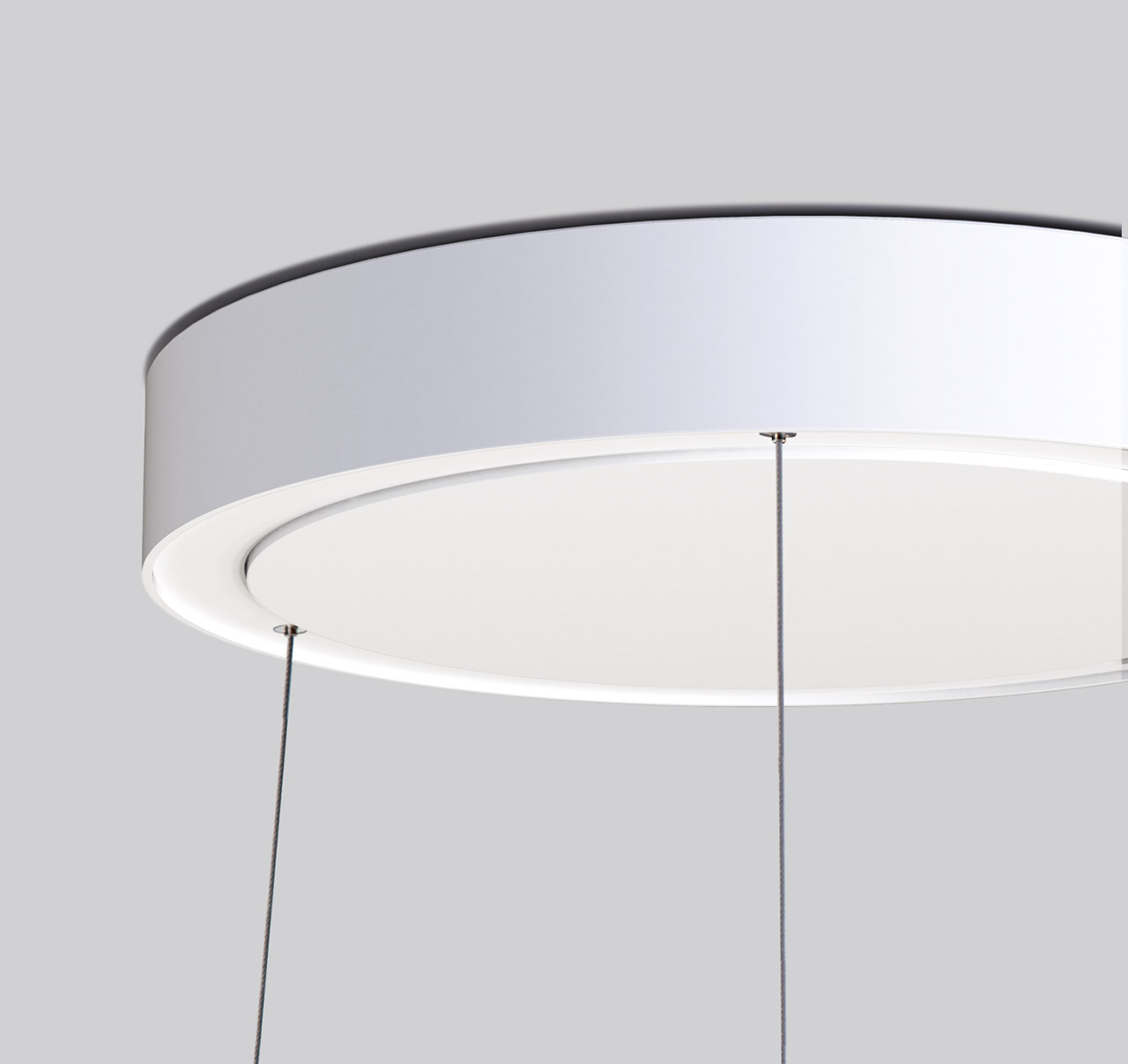

Weight inclusive canopy large

∅ 600 mm: 2.840 g
∅ 800 mm: 3.100 g
∅ 1000 mm: 3.400 g
∅ 1200 mm: 3.680 g

Downloads

Produktinformation | berliner ring 1 inlight

Download file (2 MB)

Montageanleitung | br1-il-ba-g (Baldachin groß, canopy large)

Download file (689 KB)

Montageanleitung | br1-il-ba-k (Baldachin klein, canopy small)

Download file (635 KB)

Lichtberechnungsdatei | berliner ring 1 inlight ∅ 800 mm
