berliner ring 1 up- and downlight
Pendant light
Beautiful slim U profile chandelier in round shape
Two narrow u-channels are connected back to back along a shadow gap. Light shines uniformly upwards and downwards through a translucent strip. On request, radii and lengths are custom manufactured by mawa. Various crown lights for numerous room situations are possible with a radius of 30cm or more. Please ask which specific sizes for circles, ovals, straight lengths, and free forms can be constructed on request.
Round lights are suspended from a central point as standard. Perpendicular suspension is available on request. Light color is selectable as well.
Note: Product sizes and configurations shown are exemplary and can be customized on a project-by-project basis upon request.
Lighting technology / configuration
Design
Martin Wallroth
Engineering
mawa
Material
aluminum powder-coated
acrylic glass one side satin (min. 3 × acrylic segments with tolerance gap)
Suspension:
∅ 600-800: 3 × Reutlinger® cable
∅ 1000-1200: 4 × Reutlinger® cable
acrylic glass one side satin (min. 3 × acrylic segments with tolerance gap)
Suspension:
∅ 600-800: 3 × Reutlinger® cable
∅ 1000-1200: 4 × Reutlinger® cable
Dimensions
Standard sizes: ∅ 600 mm, ∅ 800 mm, ∅ 1000 mm, ∅ 1200 mm
Profile: 20 × 43 mm (W × H)
Standard size total pendant length inclusive ring: 2533–2569 mm (depending on size)
Profile: 20 × 43 mm (W × H)
Standard size total pendant length inclusive ring: 2533–2569 mm (depending on size)
LED module
inclusive LED strip 24 V DC, 22 W per meter
with 2700 K: 124 lm/W
with 3000 K: 127 lm/W
up- and downlight each
∅ 600 mm: 42 W (with 2700 K)
∅ 800 mm: 55 W (with 2700 K)
∅ 1000 mm: 66,5 W (with 2700 K)
∅ 1200 mm: 81 W (with 2700 K)
with 2700 K: 124 lm/W
with 3000 K: 127 lm/W
up- and downlight each
∅ 600 mm: 42 W (with 2700 K)
∅ 800 mm: 55 W (with 2700 K)
∅ 1000 mm: 66,5 W (with 2700 K)
∅ 1200 mm: 81 W (with 2700 K)
Operating area
AC 220V–240V / 50Hz–60Hz
Weight inclusive canopy large
∅ 600 mm: 3.680 g
∅ 800 mm: 4.200 g
∅ 1000 mm: 4.800 g
∅ 1200 mm: 5.360 g
∅ 800 mm: 4.200 g
∅ 1000 mm: 4.800 g
∅ 1200 mm: 5.360 g
Photo: mawa design
Photo: mawa design
Photo: mawa design
Photo: mawa design
Photo: mawa design
Photo: mawa design
Photo: mawa design
Photo: mawa design Pendelleuchte kronleuchter berliner ring
Foto: mawa design

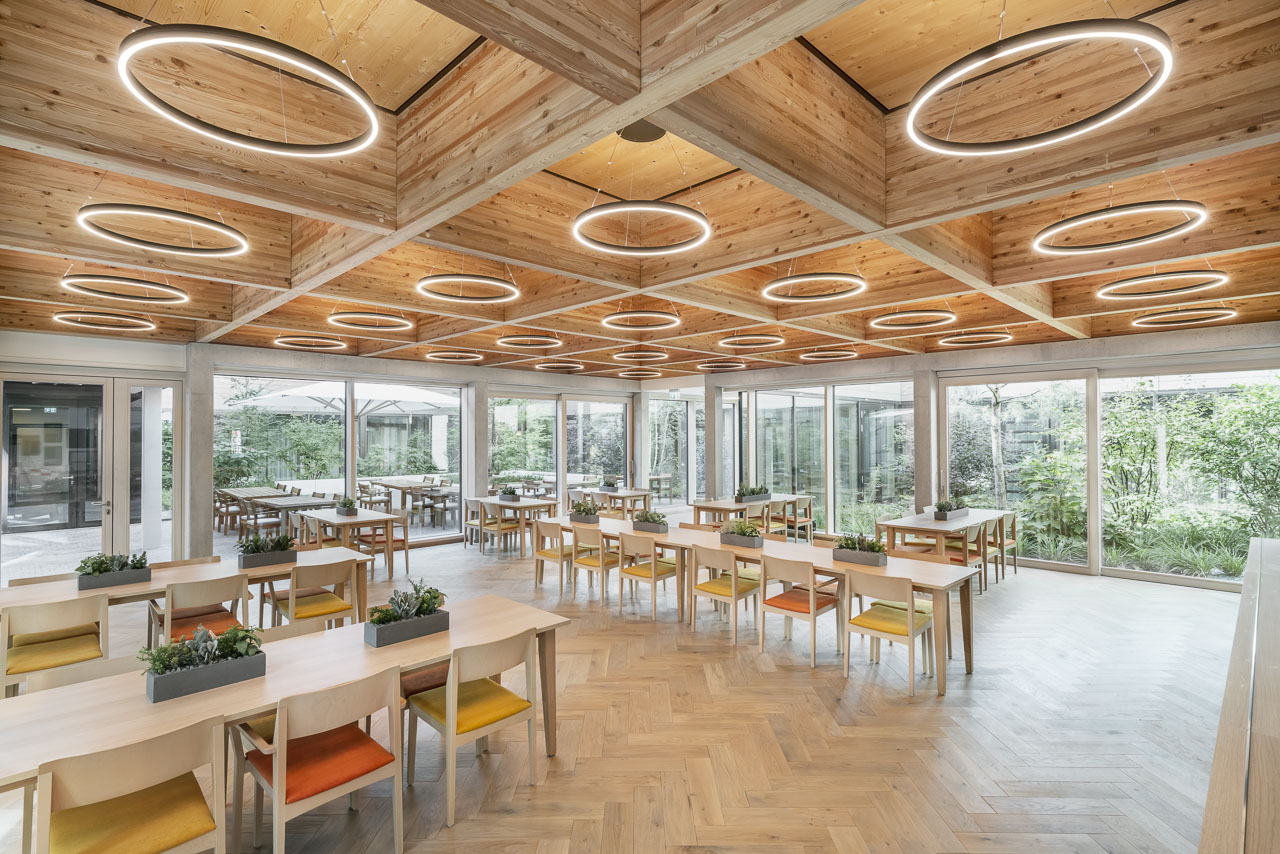

Photo: mawa design, Waldkliniken Eisenberg mit Pendelleuchte berliner ring br 1 800Foto: Stefan Lucks
