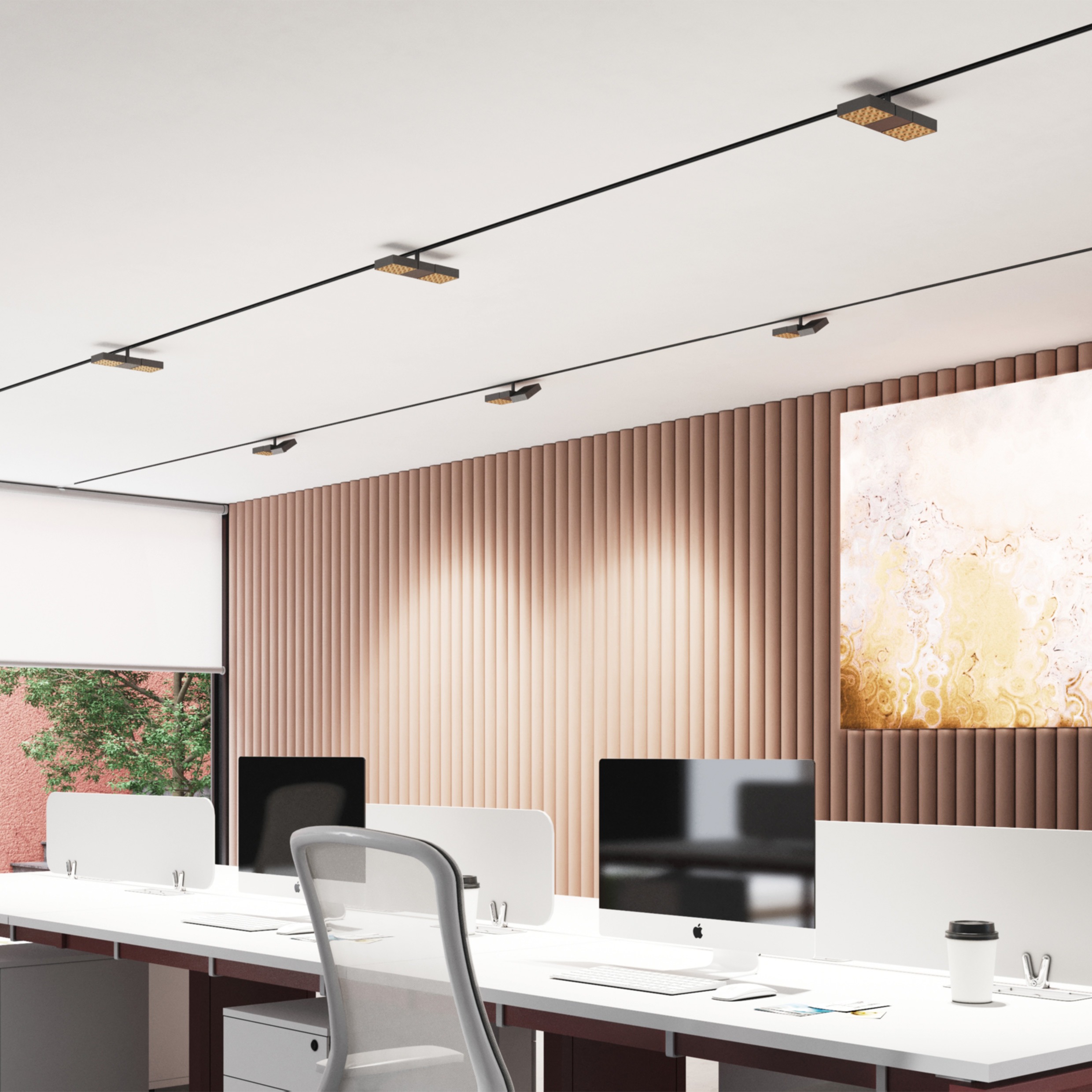

A rotatable area luminaire with a rectangular design and two independently tiltable segments. With sixteen individually glare-controlled light sources, each segment generates precisely directed light onto horizontal surfaces or walls – ideal for rooms where visual comfort is a high priority.
Lighting technology / configuration
Material
Aluminium, wet-painted
Dimensions
214 × 78 × 24 mm
Rotatability/Slewing capacity
300° rotatable and 320° tiltable
Beam Angle
45°
LED Modul
20 WL90 (10 k) > 38.000 h (IES LM-80 / TM-21)
Colour rendering index
Ra > 88 (typ. 90)
Control gear
inclusive
Operating area
DC 48 V
Weight
447 g
Controller
DALI dimmable
