wi4-eb-1r-dl-IP44

wittenberg 4.0

Compact design, filigree housing, greatest design variety.

IP44
dimmbar
Ra > 95
dim2warm

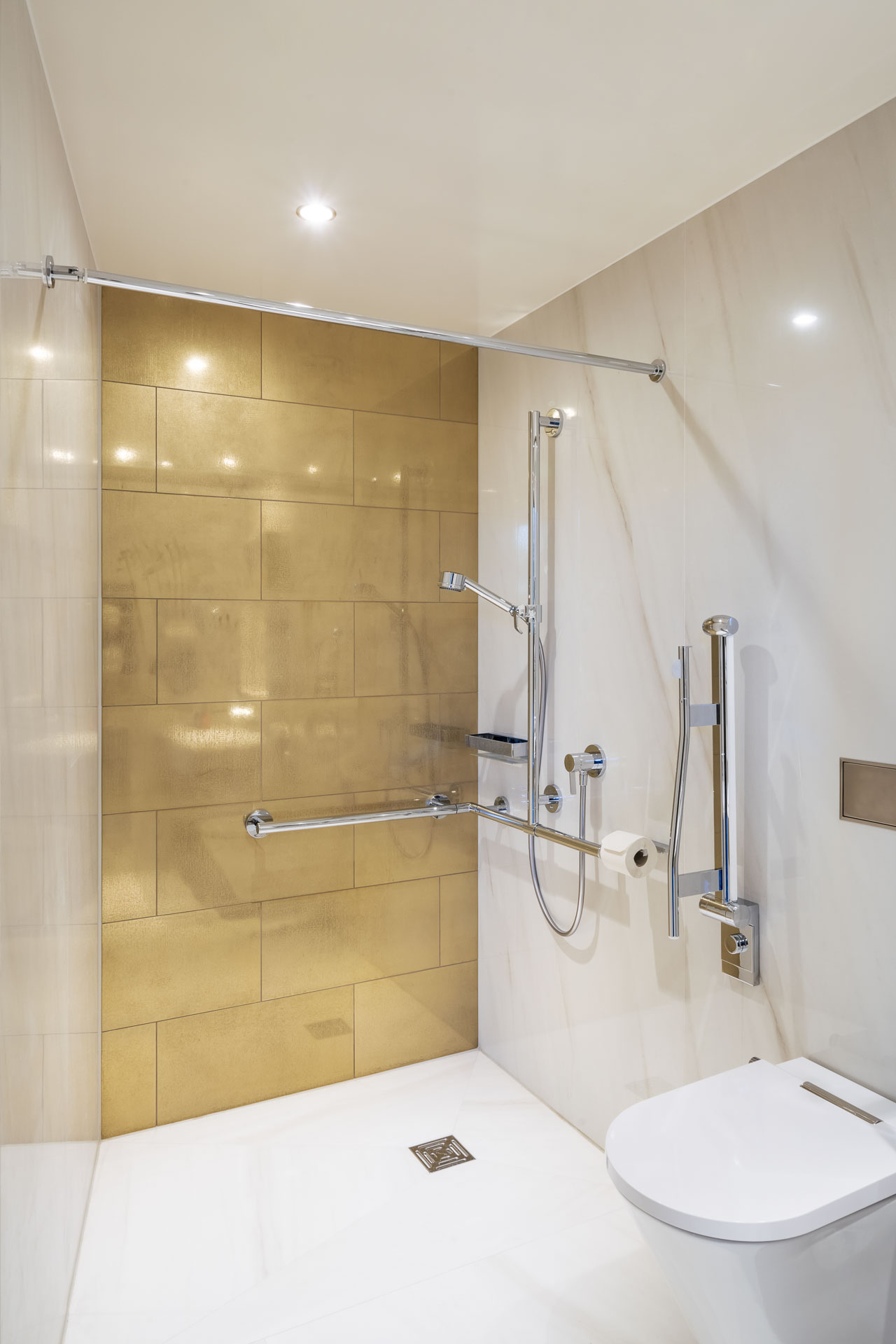

Recessed downlight with round, overlaying rim for mounting into drywall ceiling. With an additional acrylic glass cover, the light is protected against splashing water. Unfortunately no accessories can be used for this light.

Cylindrical light head with minimalist design – no visible screws disturb the elegant appearance.
The wittenberg 4.0 luminaire series achieves high luminous efficacy with compact dimensions, low energy consumption and a large, well glare-free light emission surface.
Aluminum housings in standard colors are powder-coated. Production of individual custom lights on request.

Note:
For the operation of the luminaire, a control gear is mandatory. The control gear is not included in the scope of delivery as standard, but can be added optionally in the configuration menu.

RedDot Winner 2018
LIT Lighting Design Awards 2017
Stylepark Selected L+B 2018
German Design Award 2018
DesignPlus Light and Building
Focus Open 2019 Special Mention

To view the prices, please create an dealer account or log in first.

Login or Register
Lighting technology / configuration
Design
mawa
Engineering
mawa
Material
aluminum powder-coated
Dimensions
∅ 93 × 45 mm
LED module
12,7 WL90(10k) > 61.000h (IES LM-80 / TM-21)
LED module dim2warm
12 W
L80 (10k) > 50.000 h (IES LM-80 / TM-21)
Control gear
not included
Operating area
Standard-LED
DC / 700 mA / Vf 18 V

dim2warm-LED
DC / 350 mA / Vf 36,5 V
Weight
180 g
Downloads
Produktinformation | wi4-eb-1r-dl-IP44
Download file (199 KB)
Overview wittenberg 4.0 built-in LED control gear / converter
Download file (48 KB)
Overview seventies built-in LED control gear / converters
Download file (38 KB)
Montageanleitung | wi4-eb-1r-dl-IP44
Download file (723 KB)
Planungsdaten | wittenberg 4.0
Download file (146 KB)
Lichtberechnungsdatei | wittenberg 4.0
Download file (16 KB)
Lichtberechnungsdatei | wittenberg 4.0 dim2warm
Download file (3 KB)
