wi4-eb-2e

wittenberg 4.0

Compact design, filigree housing, greatest design variety.

dimmbar
Ra > 95
dim2warm

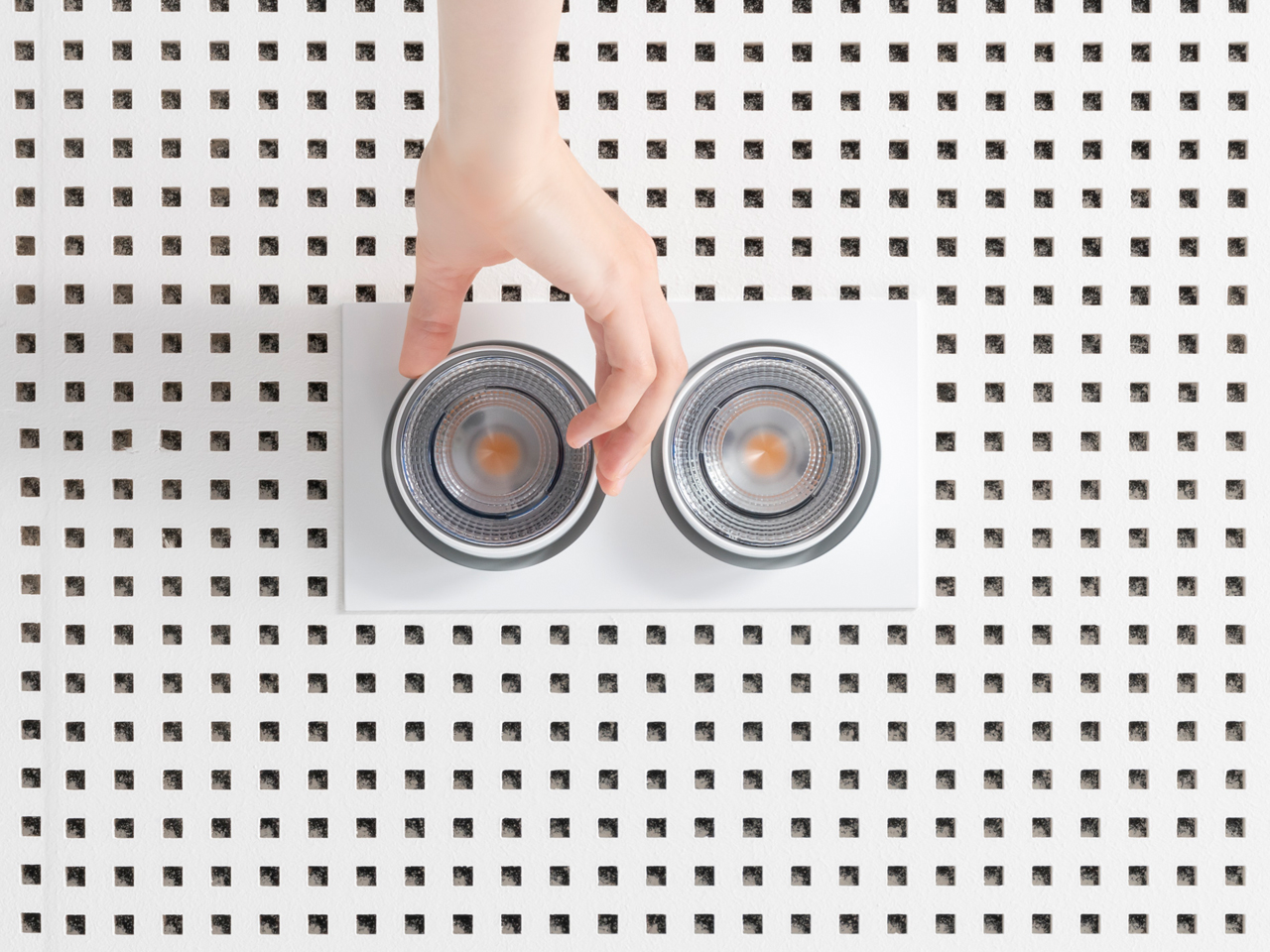

Cylindrical light head with minimalist design – no visible screws disturb the elegant appearance. The wittenberg 4.0 luminaire series achieves high luminous efficacy with compact dimensions, low energy consumption and a large, well glare-free light emission surface. Suitable for private use as well as high-performance applications due to a large number of variations and configurations.

The light head is tiltable 90° and rotatable 365° to allow for individual adjustment toward ceiling, wall, or object.

With the extensive selection of accessories – interchangeable optics, LSD-special diffusers, honeycombs and shutters – the beam angle and light control can be finely adjusted. A bayonet catch fastens the light head in the housing and allows for quick partial exchange. Another advantage: Ceiling-integrated components remain accessible for revision - without removing the entire housing.

Standard surface finishes are powder-coated in RAL 9016 matt white or RAL 9005 matt black. Production of individual custom lights on request.

Note:
For the operation of the luminaire, a control gear is mandatory. The control gear is not included in the scope of delivery as standard, but can be added optionally in the configuration menu.

RedDot Winner 2018
LIT Lighting Design Awards 2017
Stylepark Selected L+B 2018
German Design Award 2018
DesignPlus Light and Building
Focus Open 2019 Special Mention

To view the prices, please create an dealer account or log in first.

Login or Register
Lighting technology / configuration
Design
Jan Dinnebier
mawa
Engineering
mawa
Material
aluminum powder-coated
Dimensions
214 × 114 × 68 mm (L × W × H)
Rotatability/Slewing capacity
Spotlight 365° rotatable and 90° tiltable
LED module
2 × 12,7 W L90(10k) > 61.000h (IES LM-80 / TM-21)
LED module dim2warm
2 × 12 W
L80 (10k) > 50.000 h (IES LM-80 / TM-21)
Control gear
exclusive
Operating area
Standard-LED
DC / 700 mA / Vf 18 V

dim2warm-LED
DC / 350 mA / Vf 36,5 V
Weight
890 g
Downloads
Overview wittenberg 4.0 built-in LED control gear / converter
Download file (48 KB)
Produktinformation | wi4-eb-2e
Download file (229 KB)
Overview seventies built-in LED control gear / converters
Download file (38 KB)
Montageanleitung | wi4-eb-2e
Download file (127 KB)
Planungsdaten | wittenberg 4.0
Download file (146 KB)
Lichtberechnungsdatei | wittenberg 4.0
Download file (16 KB)
Lichtberechnungsdatei | wittenberg 4.0 dim2warm
Download file (3 KB)
Zubehörübersicht | wittenberg 4.0
Download file (991 KB)
