Museum Castle Vischering Lüdinghausen

Compact, powerful wall and ceiling luminaires

The historic, moated castle in the Münsterland region in Nordrhein-Westfalen is one of the oldest and best preserved complexes in the region.

Established in the second half of the 13th century, the habitable defensive structure evolved into the ancestral home of the Droste zu Vischering family. In the 16th century, wide ranging damages caused by a fire led to the reconstruction and extension of the building. Converted into a cultural and community center after the second world war, the castle today accommodates the Münsterland museum, in addition to rooms for concerts and lectures, as well as hosting temporary art and cultural history exhibits.

Following a renovation lasting a year and a half, the complex reopened in February, 2018. The architecture itself is the main focus of the new exhibition concept. The sensitive treatment of light sets the stage for the historical rooms in a subtle way. The ideas were translated with compact wittenberg 4.0 spotlights and high-performance one piece ceiling uplights. In some areas, both series were combined within a single housing, in order to meet the necessary requirement.

Client

Kreis Coesfeld

Architecture / Planning

Duncan McCauley & Polyform
Pfeiffer-Ellermann-Preckel Architekten

Lighting design

Duncan McCauley
Studio De Schutter

Photography

Philipp Obkircher

Scope of services

3 × »profile crown light«
Ø 1000 mm, 3000 K, 1300 l, DALI dimmable, white matt (RAL 9016)

1 × »profile crown light«
Ø 1000 mm with Emergency light monitoring module, 3000 K, 1300 lm, DALI dimmable, white matt (RAL 9016)

1 × »profile crown light«
Ø 1500 mm with Emergency light monitoring module, 3000 K, 1300 lm, DALI dimmable, white matt (RAL 9016)

1 × »profile crown light«
Ø 1200 mm with Emergency light monitoring module, 3000 K, 1300 lm, DALI dimmable, white matt (RAL 9016)

8 × one piece wall light op8
custom build with 2 × wi4-Lichtkopf and 3 dimming groups DALI, 3000 K, white matt (RAL 9016)

10 × one piece wall light op8
custom build with 2 × wi4-light head and 3 dimmingroups DALI + Emergency light monitoring module, 3000 K, white matt (RAL 9016)

4 × one piece wall light op8
3000 K, 3400 lm, DALI dimmable, black matt (RAL 9005)

16 × wittenberg 4.0 surface-mounted spotlight wi4-ab-1r
3000 K, 1300 lm, DALI dimmable, 10 × white matt (RAL 9016), 6 × RAL 7022

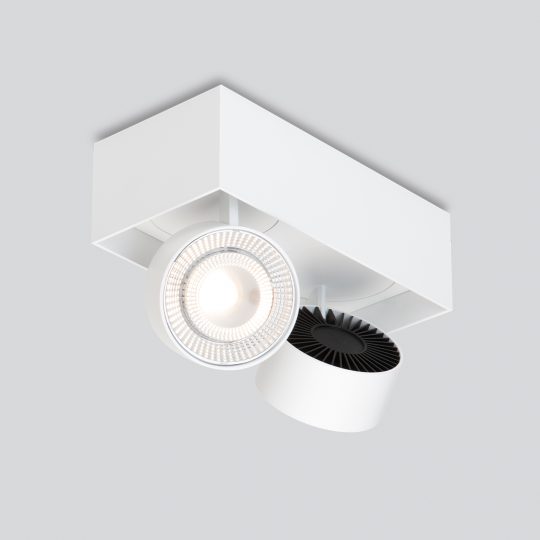

26 × wittenberg 4.0 surface-mounted spotlight wi4-ab-2e-hb
3000 K, 1300 lm, DALI dimmable, 24 × white matt (RAL 9016), 2 × RAL 7022

14 × wittenberg 4.0 surface-mounted spotlight wi4-ab-2e-hb
+ emergency light monitoring module, 3000 K, 1300 lm, DALI dimmable, white matt (RAL 9016)

6 × wittenberg 4.0 surface-mounted spotlight wi4-ab-2e-hb-4-Sonder
3000 K, 1200 lm, DALI dimmable, RAL 7022

13 × seventies contact track spotlight se-11-4-9016
3000 K, DALI dimmable, white matt (RAL 9016)
