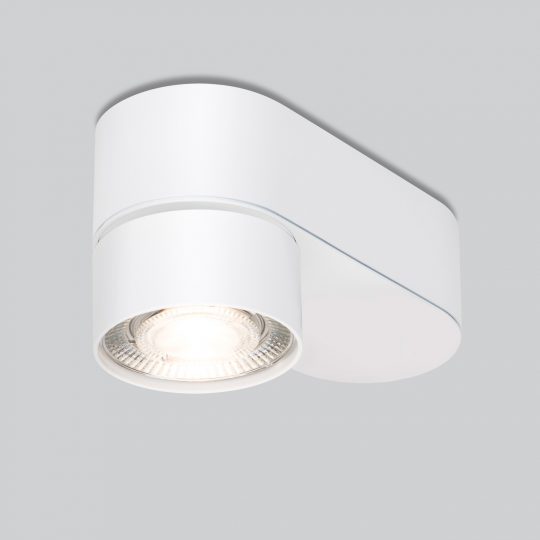

wi4-ab-1ov

wittenberg 4.0 Serie

Compact design, filigree housing, greatest design variety.

dim2warm

Cylindrical light head with minimalist design – no visible screws disturb the elegant appearance. The wittenberg 4.0 luminaire series achieves high
luminous efficacy with compact dimensions, low energy consumption and a large, well glare-free light emission surface.
Aluminum housings in standard colors are powder-coated. Production of individual custom lights on request. With the extensive selection of accessories – interchangeable optics, LSD-special diffusers, honeycombs and
shutters – the beam angle and light control can be finely adjusted.
A bayonet catch fastens the light head in the housing and allows for quick partial exchange.

RedDot Winner 2018
LIT Lighting Design Awards 2017
Stylepark Selected L+B 2018
German Design Award 2018
DesignPlus Light and Building
Focus Open 2019 Special Mention
349,00 € incl. 19% VAT
Depending on the configuration selected, the total may differ from the base price:
Lighting technology / configuration
Design
Jan Dinnebier
mawa
Engineering
mawa
Material
aluminum powder-coated
Dimensions
176 × 76 × 97 mm (L × W × H)
Rotatability/Slewing capacity
Spotlight 365° rotatable and 90° tiltable
LED module
12,7 W L90(10k) > 61.000h (IES LM-80 / TM-21)
LED module dim2warm
12 W
L80 (10k) > 50.000 h (IES LM-80 / TM-21)
Control gear
inclusive
Operating area
AC 220V–240V / 50Hz–60Hz
Weight
720 g
Type approved by
DEKRA
Downloads
Produktinformationen | wi4-ab-1ov
Download file (157 KB)
Montageanleitung | wi4-ab-1ov
Download file (749 KB)
Planungsdaten | wittenberg 4.0
Download file (146 KB)
Lichtberechnungsdatei | wittenberg 4.0
Download file (16 KB)
Lichtberechnungsdatei | wittenberg 4.0 dim2warm
Download file (3 KB)
Zubehörübersicht | wittenberg 4.0
Download file (991 KB)
